High-Precision Helical Gear Machining: The Key Technology Driving a 30% Leap in Efficiency and Lifespan for California Manufacturing

Introduction

On the innovative manufacturing map of California, from the extreme environmental demands of Aerospace & Defense to the stringent standards for quiet and precise transmission in Medical Device Innovation, the performance of transmission systems is always a key determinant of equipment value. However, many companies still suffer from excessive equipment operating noise, low transmission efficiency, and unplanned downtime caused by premature gear wear. The root of these problems often lies in the performance ceiling of traditional gear machining technologies.

This article delves into how high-precision Helical Gear Milling technology becomes the core driver empowering California Manufacturing to new heights by breaking through these bottlenecks.

Why Helical Gears Are the Preferred Choice for Transmission Systems in California’s High-End Manufacturing?

Exceptional Transmission Performance Meets High Standards

The angled tooth design of helical gears enables multi-tooth continuous contact during meshing. This progressive engagement significantly reduces impact and vibration during operation. Compared to spur gears, helical gear transmission offers higher smoothness, can reduce noise levels by 15-20 decibels, and due to their larger contact area, provides significantly greater load capacity and service life. Under conditions adhering to relevant American Gear Manufacturers Association (AGMA) standards, a well-designed helical gear can achieve up to 30% greater durability than a comparable spur gear . These superior performance characteristics precisely meet the high demands for high reliability and low-noise operation in transmission systems for advanced manufacturing.

Precisely Aligned with the Application Scenarios of California’s Core Industries

California’s high-end manufacturing, particularly in sectors like Aerospace & Defense and medical device innovation, imposes nearly stringent standards on transmission components .

1. In the Aerospace & Defense sector, the high reliability of the transmission system is a non-negotiable indicator. Helical gears, with their smooth load-bearing characteristics, are better suited to handle high loads and shock conditions, making them the ideal choice for critical transmission components.
2. In the Medical Device Innovation sector, for example in MRI equipment or precision surgical robots, the low-noise characteristics of helical gears are crucial for ensuring patient comfort and equipment precision.

Furthermore, the high load capacity and long service life of helical gears directly translate into higher production efficiency and lower maintenance costs, which is vital for advancing the overall Industrial Technology level of California Manufacturing.

Advanced Manufacturing Technology Ensures Precision Machining and Cost-Effectiveness

Modern Helical Gear Milling technology, especially utilizing five-axis CNC machining centers and advanced tooling, can efficiently and precisely machine complex helical tooth forms. This advanced manufacturing process ensures high gear accuracy and consistency, meeting the needs of high-end applications .

Simultaneously, mature machining processes and standardized production make the manufacturing of high-precision helical gears more feasible in terms of cost control, offering businesses good cost-effectiveness. By optimizing manufacturing processes and the supply chain, California manufacturing enterprises can acquire high-performance transmission components while controlling costs, thereby enhancing the market competitiveness of their end products .

What Are the Core Technical Elements of High-Precision Helical Gear Cutting Machines?

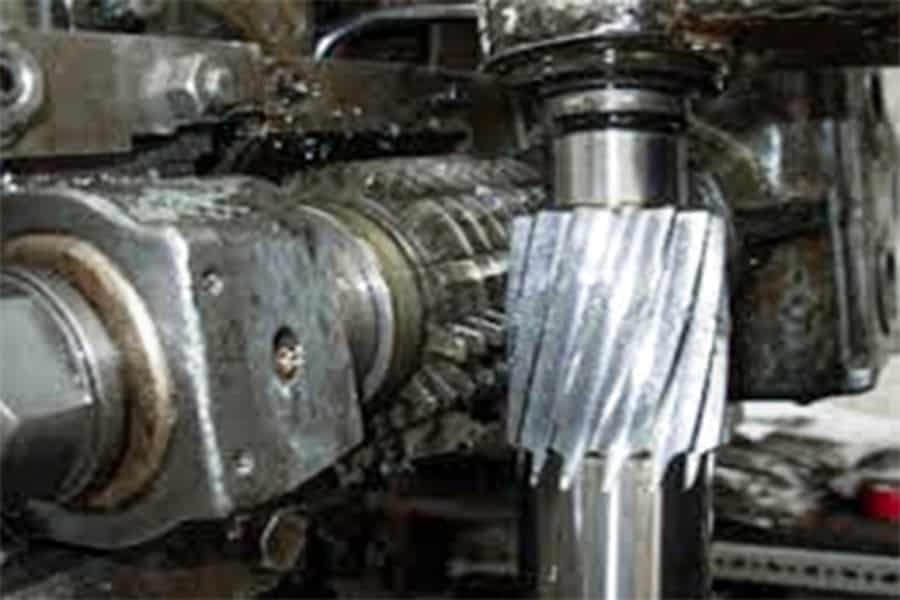

Achieving the exceptional performance of helical gears is inseparable from advanced machining technology. Modern high-precision helical gear cutting machines, particularly five-axis CNC machining centers, are the tools of choice for this complex task.

Their core technology lies in the ability to precisely control the relative motion between the tool path and the work piece to machine the exact helix angle and tooth form required by the design. The dynamic accuracy, rigidity of the machine tool, and the computational power of the CNC system collectively determine the final gear’s accuracy grade .

During the machining process, the selection of gear cutting tools is paramount. Whether form cutters for milling or hobs for hobbing, their material (often carbide or coated tools), geometry, and wear condition directly affect the gear’s tooth profile accuracy and surface finish .

An optimized gear cutting process also encompasses detailed techniques such as high-speed cutting technology to reduce cutting force and deformation, rational cutting fluid application to control thermal deformation, and effective vibration damping measures to ensure tooth surface quality. These elements together form the foundation of high-precision helical gear manufacturing, ensuring that every gear leaving the factory meets stringent application requirements .

How to Ensure Helical Gear Machining Quality While Controlling Costs?

For manufacturing enterprises, excellent performance must be coupled with reasonable cost. Numerous factors influence the final machining cost of helical gears, mainly including material selection (e.g., common alloy steel vs. high-performance specialty steel), required accuracy grade (e.g., AGMA 12 vs. the stricter AGMA 13 standard), necessary heat treatment processes (such as carburizing & hardening, nitriding), and production order quantity .

Different types of gear cutting have their own economical batch size ranges. For instance, for small-batch prototypes or repair parts, Helical Gear Milling on a milling machine is typically more flexible and cost-effective. For mass production, dedicated processes like hobbing or shaping are more efficient with lower per-unit costs .

Companies can effectively control costs through Design for Manufacturability optimization, such as collaborating with manufacturing experts early in the design phase to relax tolerances in non-critical areas, or selecting more easily machinable materials that still meet performance requirements. From a supply chain management perspective, choosing a manufacturing partner with comprehensive technical capabilities and stable quality is itself an efficient Supply Chain Solution, avoiding hidden costs caused by rework, delivery delays, etc., thus achieving optimal total cost .

What Unique Machining Challenges Do Complex Applications Like Double Helical Gears Face?

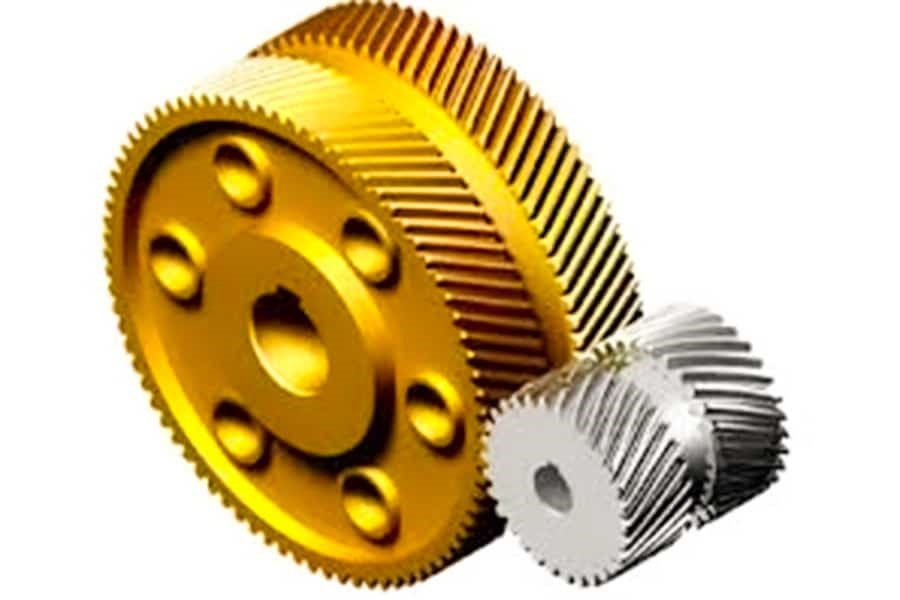

Double helical gears, also known as herringbone gears, are the ideal choice in extreme application scenarios such as heavy machinery, large ship propulsion systems, and high-power mining equipment due to their ability to effectively cancel out axial forces. However, their unique structure presents three core machining challenges .

Ensuring Precise Tooth Flank Symmetry to Avoid Axial Force Imbalance

The performance advantage of double helical gears largely depends on the precise mirror symmetry of the left and right-hand helices. Any minor asymmetry can prevent the complete cancellation of axial forces, leading to vibration, noise, and potential bearing damage. As explained in the principles found in the “Mechanical Design Handbook,” successfully machining double helical gears is the ultimate test of a manufacturer’s comprehensive technical capability .

Precision Control Concept:

V-shaped Vertex Alignment Deviation: For a double helical gear, the tangential extensions of two oppositely handed gear teeth along the helix intersect to form an imaginary V-shaped vertex. The consistency of this vertex’s axial position (i.e., alignment) is a key indicator for assessing flank symmetry. Inconsistent axial positions of the vertices of individual teeth (presence of alignment deviation) lead to uneven load distribution, affecting transmission smoothness.

High-Precision Measurement Method:

Full Tooth Contact Pattern Method: Modern precision machining typically uses the “Full Tooth Contact Pattern Method” for inspection on gear measuring centers. By evaluating parameters like the total alignment deviation (FA), flank symmetry errors can be controlled at the micron level, for instance, keeping the FA value within 0.0082 mm, to ensure uniform load distribution .

Dealing with Complex Tool Paths and Avoiding Machining Interference

The complex geometry of double helical gears, especially the central tooth groove area (particularly in designs without a groove), places extremely high demands on tool path planning and machine tool motion control .

• When machining double helical gears without a groove, to avoid interference​ between the grinding wheel and the already machined tooth flank in the central part of the tooth groove, it is necessary to use a small grinding wheel and plan extremely precise NC paths. For example, the Emag GP 500 H form grinding machine can use grinding wheels of various sizes; its tangential axis design and dedicated software system can optimize the wheel position to address this challenge .
• Complex tool path planning, such as using a double helical space-filling curve algorithm with corner arc optimization, helps generate smooth tool trajectories, reduce machine tool shock, and potentially enable one-pass machining without retraction, which is crucial for ensuring flank quality and improving machining efficiency .

Controlling Deformation During the Heat Treatment Process

Heat treatment is a critical step for enhancing gear tooth surface hardness and wear resistance, but it can cause gear deformation due to internal stress relief. This deformation is particularly detrimental to the symmetry of double helical gears .

• To control heat treatment deformation, innovative gear structures are sometimes adopted, such as the diamond double helical cylindrical gear, where the individual diamond-shaped teeth are separate. This structure helps reduce stress concentration and deformation during heat treatment .
• On the other hand, during the machining process, especially in the grinding operation, correction of deformation occurring after heat treatment (quenching) is necessary. For example, the Emag GP 500 H integrates a high-precision measuring system that can inspect and execute corrections immediately after grinding the first tooth, thereby effectively controlling deformation .

How Can California Businesses Choose a Local, Reliable Gear Cutting Service Provider?

Faced with growing technical demands, how can California manufacturing companies select a qualified gear machining partner? First, the supplier’s technical equipment is a reflection of hard power. Possessing modern equipment like five-axis CNC gear machining centers and gear measuring centers is a prerequisite for ensuring accuracy . Second, industry experience is crucial; suppliers with proven success stories in specific fields like Aerospace & Defense or Medical Device Innovation better understand the special standards and quality requirements of those industries .

Furthermore, internationally recognized quality certification systems are a reliable filter for screening suppliers. For example, IATF 16949 certification is a ticket to entry for the automotive industry supply chain, while AS9100 is essential for the aerospace sector. For medical device manufacturers, choosing a supplier certified to ISO 13485 is almost a given requirement. These certifications systematically ensure consistent product quality and traceability .

Many business owners might try searching for “gear cutting near me” to find local services. However, geographical convenience should yield to technical capability and qualification matching. It is advisable to focus on reviewing the supplier’s case studies, especially successful projects highly relevant to one’s own industry. For example, companies seeking a one-stop solution can refer to professional Helsinki gear milling services for more in-depth technical insights. When selecting a supplier with comprehensive certifications and extensive experience, such as a manufacturer with deep accumulate in the field of precision gear machining, their technical strength and quality management system are key to ensuring project success.

Conclusion

In summary, high-precision helical gear machining is far from a simple component replacement; it is a key technology driving systemic upgrades in noise reduction, efficiency improvement, and lifespan extension for California manufacturing. By deeply understanding its technical principles, optimizing machining processes, and selecting experienced partners with comprehensive certifications (including ISO 9001, IATF 16949, AS9100D, ISO 13485, etc.) , companies can fundamentally revolutionize the performance of their transmission systems, thereby building a lasting advantage in fierce global competition.

Is there untapped potential in your transmission system? Immediately contact a precision manufacturing expert like JS Precision, possessing ISO 14001, ISO 9001, IATF 16949, and AS9100D certifications, to obtain a free manufacturability analysis and quotation for your project. Take the first step towards equipment upgrade and efficiency leap.

FAQs

Q:What are the main advantages of helical gears over spur gears?
A:Helical gears operate more smoothly and quietly due to gradual tooth engagement, which reduces vibration and noise. They also have a higher load-carrying capacity and longer service life.

Q:What are the key challenges in machining double helical gears?
A:The primary challenges are ensuring perfect symmetry between the left and right-hand helices to cancel axial forces, avoiding tool interference in the central groove, and controlling heat treatment deformation.

Q:What factors most significantly impact the cost of helical gear machining?
A:Key cost factors include gear material selection, the required precision grade (e.g., AGMA class), necessary heat treatments, and production batch size.

Q:What should a company look for in a high-precision gear machining supplier?
A:Key criteria include advanced CNC equipment (like 5-axis milling machines), relevant industry experience, and important quality certifications like ISO 9001, AS9100, or IATF 16949.

Q:How does modern CNC technology improve helical gear machining?
A:Modern CNC systems enable highly precise control of complex tool paths for accurate helix angles, allow for high-speed machining, and often integrate in-process measurement for real-time quality control.
