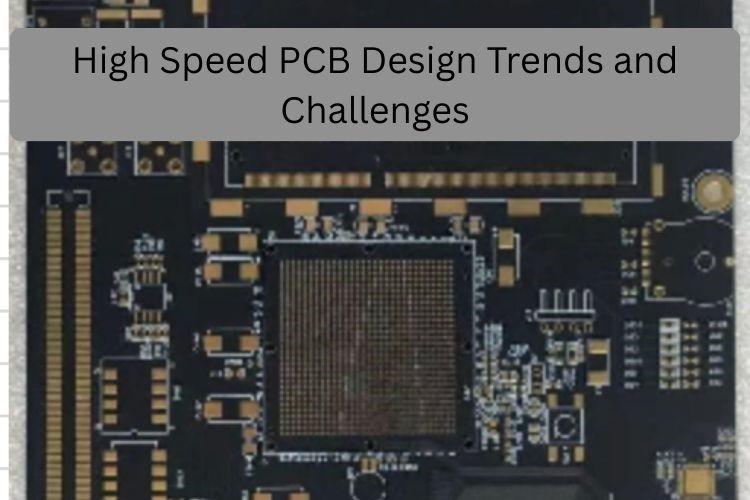

High Speed PCB Design Trends and Challenges in Modern Electronics

The electronic industry is facing an inflection point that has never been seen before. The requirements of 5G infrastructure, accelerators based on artificial intelligence and AI, automotive electrification, and quantum computing all at the same time are pushing PCB technology beyond its historic boundaries. Rates of 10 Gbps and more, component densities of just a few millimeters and thermal dissipation of industrial standards require significant reconsideration of high speed PCB design approaches. The cozy design styles of past decades are no longer applicable.

Mega-Trend 1: Artificial Intelligence (AI) -based Automated Design and Routing Optimization

The one most important innovation that is changing high speed PCB design is the integration of the artificial intelligence into PCB layout and routing automation. Millions of design possibilities can now be analyzed in only a matter of seconds using AI algorithms that are optimizing trace routing and via placement as well as the geometry of layer stacks with precision that is beyond human ability.

The effect is demonstrated by real numbers: AI-based routing systems are able to complete the trace 90 percent of the time with a first attempt and design rule-compliant. Manual routing engineers have a 60 -70% first-pass success. More importantly, AI can save 30-40 percent time in design cycles, and at the same time will enhance signal integrity measures by 15-25 percent. In the case of huge multi-layer (20 or more layers) boards, this takes weeks of manual routing and converts to days of optimization with AI.

Signal integrity gains in particular Signal integrity Signal integrity AI provides signal integrity Signal integrity uses optimal trace width, spacing and positioning of layers to provide impedance control with a 3-percent tolerance -30 times better than traditional design methods that had provided 8-10 percent. AI models can indicate behavior at frequency ranges of 1-20 GHz and are useful for predicting reflections, crosstalk and timing skew prior to making physical prototypes and remove expensive redesigns.

Mega-Trend 2: 5G and Beyond-Multi-Gigahertz Design as a Baseline Requirement

Infrastructure based on 5G and new 6G technology requires PCBs that can work with the frequencies that in existing designs fail to consider. at frequencies of 5 GHz and higher trace routing is transmission-line engineering. The design of antenna boards at 28 GHz millimeter-wave frequency must also have accuracy in a vias of 50 m and control in impedance measurement of 3 percent.

The problem of manufacture is severe: Conventional automated optical inspection (AOI) equipment can neither recognize defects in fineline structure (5-10 micrometers) nor measure impedance-critical via dimensions. The AOI A 430 is a modern technology that incorporates AI-based metrology to check 2D laser by measuring diameter, roundness, taper, and location. This is the precision that was impossible five years ago and it is now a requirement.

Complexity of design rules grows: 5G PCBs require controlled impedance amongst several types of signals at once, i.e. high-speed signaling on differential pairs, power distribution on single-ended signals, mmWave transmission on antenna traces. One design has to deal with 3-5 different tight tolerances of impedance targets. A pcb layout service provider that deals with high-speed design will have to master this complexity otherwise he or she will experience first-pass failure rates of over 40%.

Mega-Trend 3: Thermal Management and Power Integrity become Co-Design Requirements

The current day processors require consistent power delivery with 1 percent tolerance in voltage variation at the current densities of more than 1 megampere per square centimeter. To do this, it is necessary to have advanced power delivery networks (PDNs) with carefully-located decoupling capacitors, low-inductance connections and thermal-aware design which incorporates heat dissipation, along with electronic routing of the PCB, concurrently.

The thermal dilemma prevails: 100+ watts are focused in 10×10 mm footprints by high power components power density yields as much power as an industrial furnace could. PCBs need to facilitate movement of heat out of the components although to heatsinks or to ambient without compromising neighboring signal in other traces. Sequential design, specially, electrical layout, then thermal management, is failure guaranteed. Modern design needs electromagnetic-thermal co-simulation, the representation of both the electrical performance and thermal distribution at the same time.

Mega-Trend 4: Design-to-be-Different as Risk Management

The design intent versus manufacturing capability is expanding not decreasing. Complex via designs, impractical trace designs, incompatible material designs condemn designs that run well in simulation but fail on the process. Sophisticated manufacturing pcb fabrication plants now require DFM analysis- official design inspection revealing risk of manufacturability issues prior to the manufacture.

PCB fabrication manufacturer of leading suppliers offer: layer stack-up requirements including precise dielectric constants and dielectric thicknesses, controls in the design of controlled impedance with errors that are process-specific, via design rule consideration of process-precision laser drilling, and thermal modeling of lamination cycle warping.

Emerging Critical Challenges

• Challenge 1: Signal Integrity at 20 GHz. Conventional tools in design were tuned at 5 GHz; tool limitations were found in 5 GHz leaps. Beyond 15 GHz, crosstalk, reflections and timing skew all become unpredictable unless very sophisticated simulation is used.
• Challenge 2: Shortage of materials. There is a constraint in the supply of low-loss substrates needed to support 5G (Rogers, Megtron). Strategic business risk is sourcing available materials over a long period.
• Challenge 3: Skill Gap. It is not an easy task to find designers who can design simultaneous signal integrity, power integrity, thermal management and manufacturing constraints. The majority of organizations do not provide internal services so they have to engage outside partners in form of pcb layout services.

Conclusion: Evolution or Extinction

Market forces are wiping ground on organizations that are still stuck with the old method of PCB design which is characterized by the high speed. Design tools powered by AI, advanced simulation tools, and design-for-manufacturability are becoming not competitive but require establishments as a minimum. Rulers are the ones that invest in the services of professional pcb layouts, collaborate with the best pcb fabreation manufacturer facilities, and incorporate AI-based optimization in design processes.

The PCB design boundary has been moved forever. Going back to past traditional is obsolescence.
